Shredding

Products - Equipment - VZ 850

The dual-shaft shredder VZ 850 developed by our technical director Norbert Hammel, incorporates innovative technologies and decades of experience in the recycling industry into one powerful machine. Due to the hydraulic drive, this shredder is suitable for almost any material – even the really big chunks!

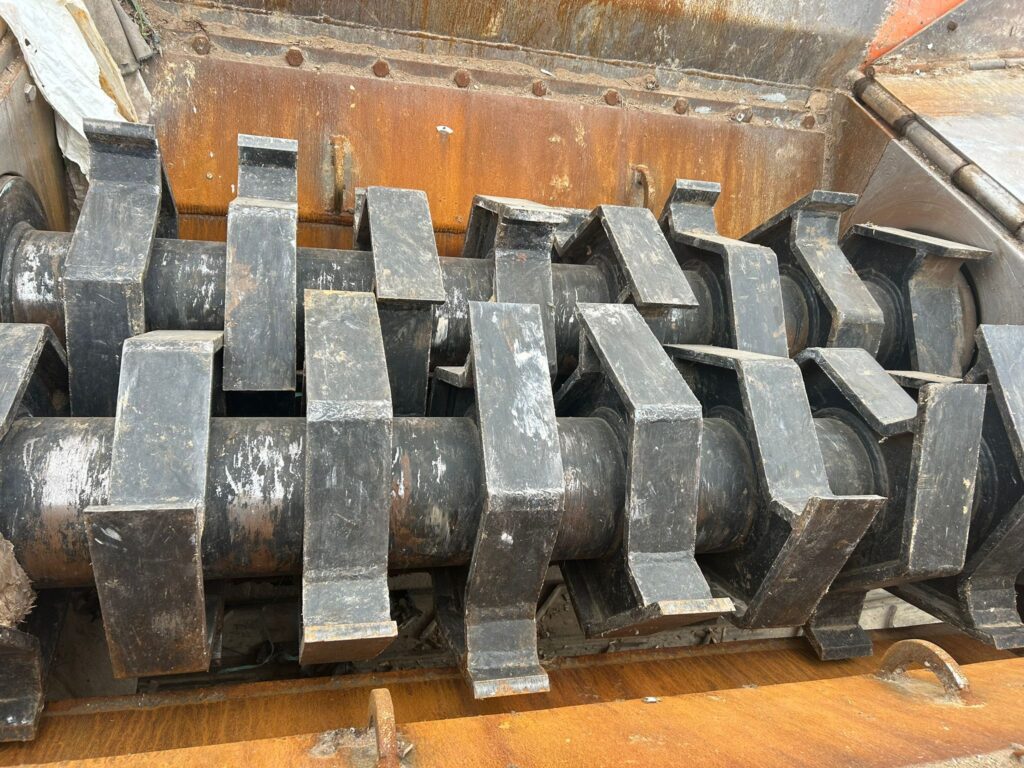

  • Patented T-blade profile guarantees a precise cutting process (energy savings up to 15%)
  • Two tilting hoppers for an optimal feeding of the material to the tool shafts
  • Automatic reversing function protects against fracture of the cutting tools
  • Low noise level due to effective sound insulation and low engine speed
  • Integrated fine dust filter frees the engine compartment of dust particles
  • Optional wheel axle with solid rubber tires guarantees unrestricted maneuverability
  • Low wear and maintenance costs and maintenance friendly modular design
Diesel Drive (D)

Diesel Drive (D)

For most applications the version with a diesel engine and a wheel axle is suitable. Due to the sturdy hook lift base frame, the machine can be transported to different locations without any problems. With the help of a wheel loader or forklift truck, it can also be repositioned quickly and easily on the job site by the integrated drawbar.

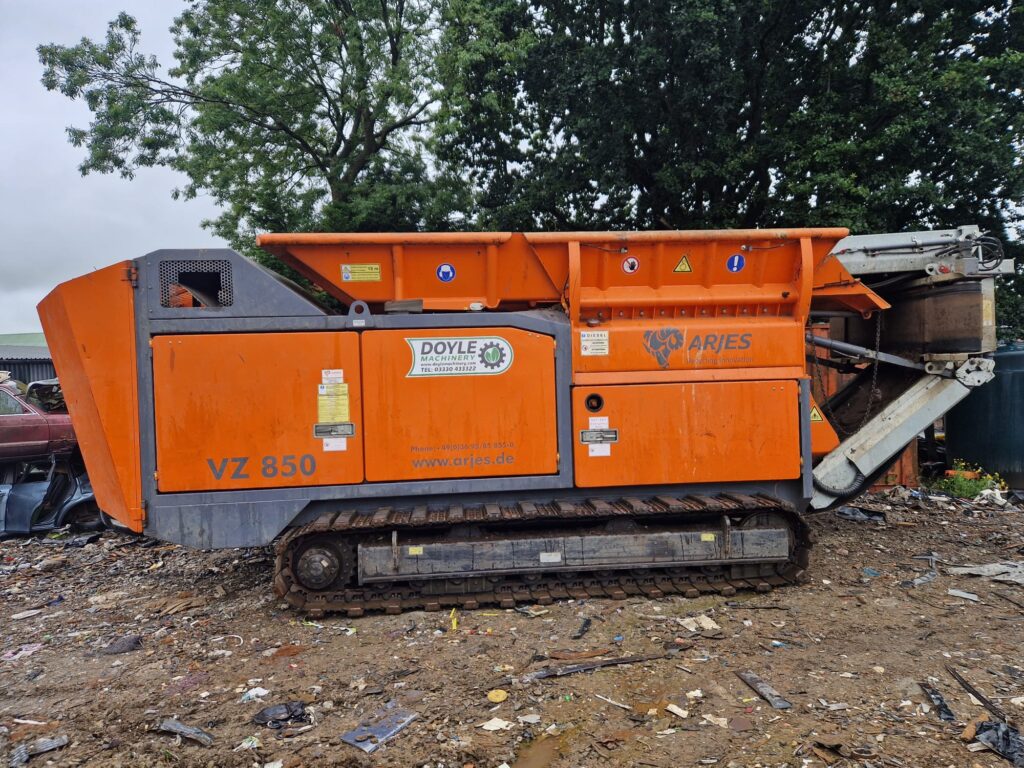

Diesel Tracks (DK)

Diesel Tracks (DK)

For mobile use, we offer the version with track system. This allows the machine to be moved to a new location independently without any other equipment. This model is also designed for use in rough terrain. In addition, the chassis can be equipped with rubber track shoes to protect the surface. It is controlled by a 21-channel radio remote control.

Electric Drive (E)

Electric Drive (E)

For all situations where special requirements for exhaust and noise emissions apply, we offer a version with an electric engine. It is also possible to divide the shredder into several components in order to meet structurally related specifications.

Technical changes, print errors and mistakes reserved. All data are approximate values of the standard model. Latest Revision: May 2015

MODELPERFORMANCE (KW/PS) LENGTH X WIDTH X HEIGHT (MM) SHAFTS (MM) WEIGHT (KG)
VZ 850 D 565 kW (768 hp)8.000 x 2.500 x 2.8002.000 20.000
VZ 850 DK565 kW (768 hp) 8.800 x 2.900 x 3.200 2.000 26.000
VZ 850 E2 x 160 kW8.200 x 2.500 x 2.9002.00020.000
Waste Wood

Waste Wood

Processing waste wood of categories A1 to A4 like demolition wood, cable drums and pallets for material or thermal recycling.

Biomass

Biomass

For the effective use of organic solid resources in bio-power plants by processing green waste and tree branches.

Scrap Metal

Scrap Metal

Reducing the volume of valuable ferrous and non-ferrous metals with specialized shafts and asynchronous drive.

Waste & Plastics

Waste & Plastics

Shredding domestic and industrial waste saves landfill space and enables sorting and separating of valuable ressources.
